Description

If you require communications in harsh and challenging environments, safety is paramount. Hytera’s PD7-Ex range comply with the strictest standards of intrinsic safety, providing those working with the presence of explosive gas, combustible dusts and hazardous liquids with all the assurances they need.

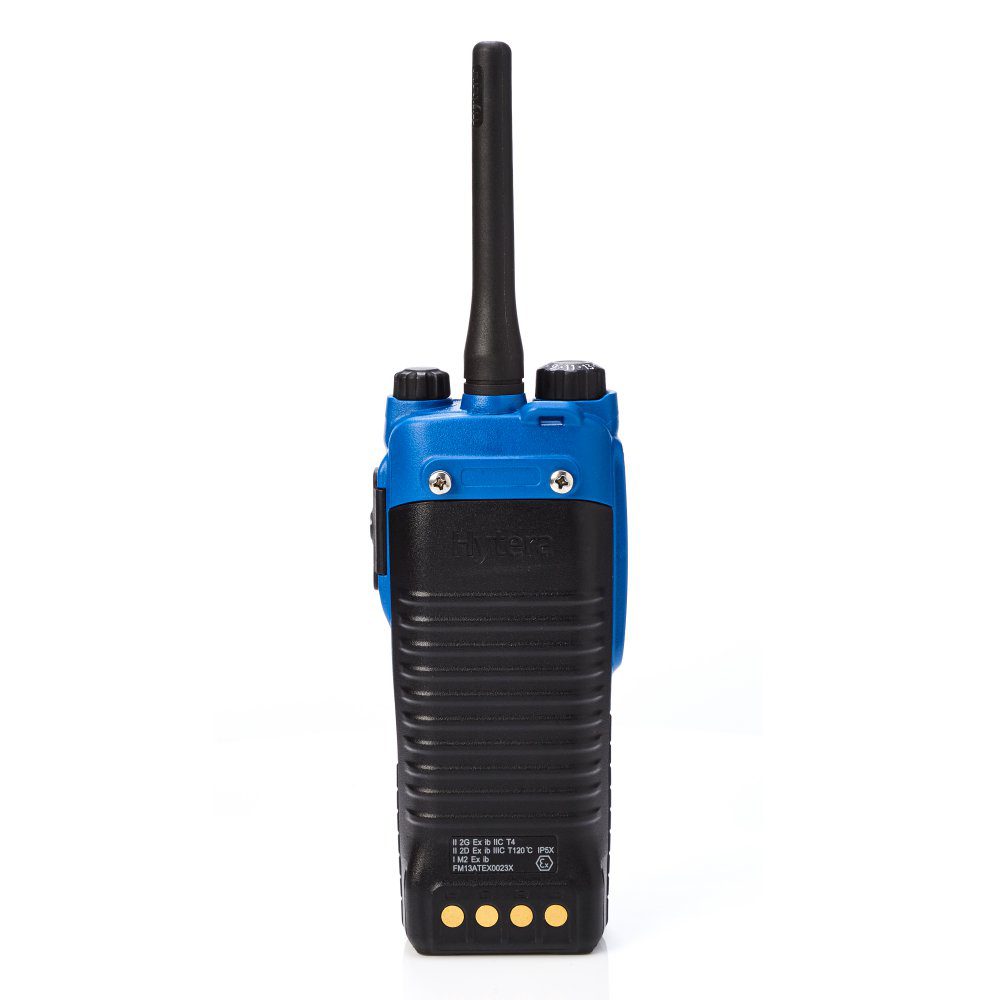

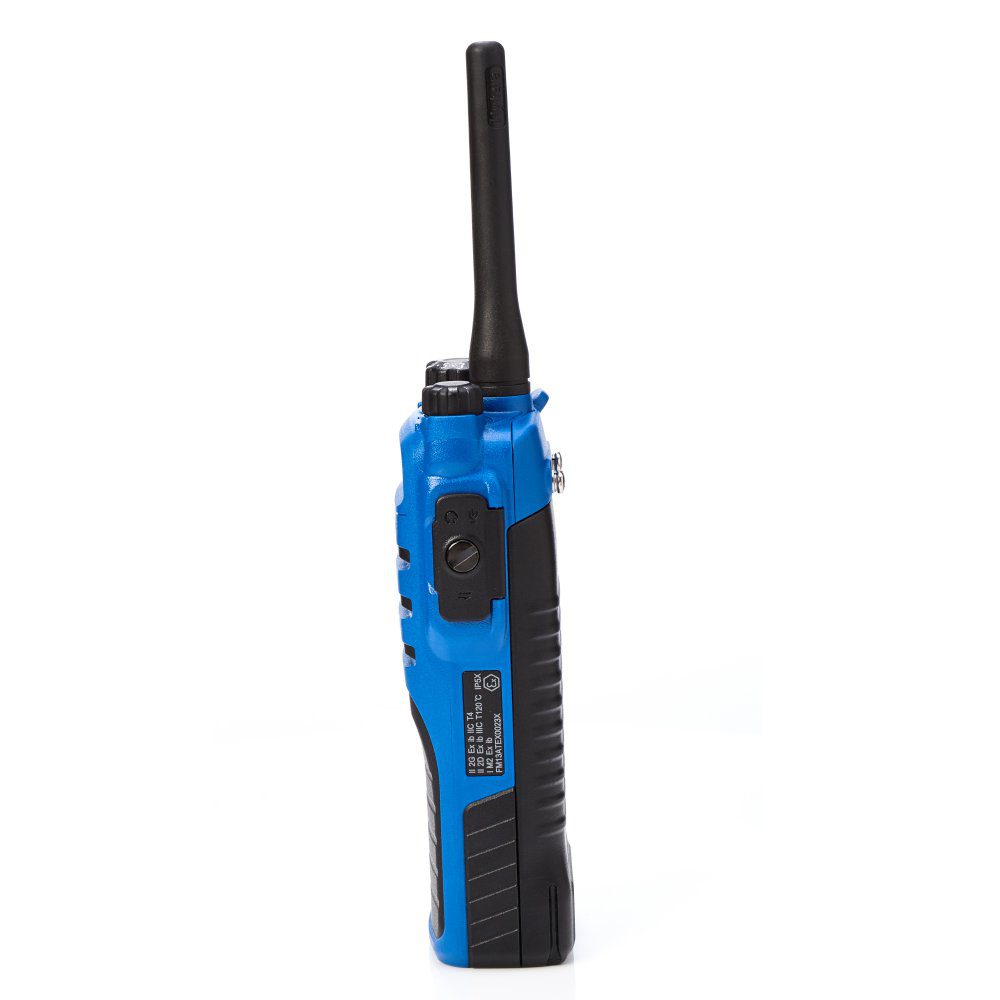

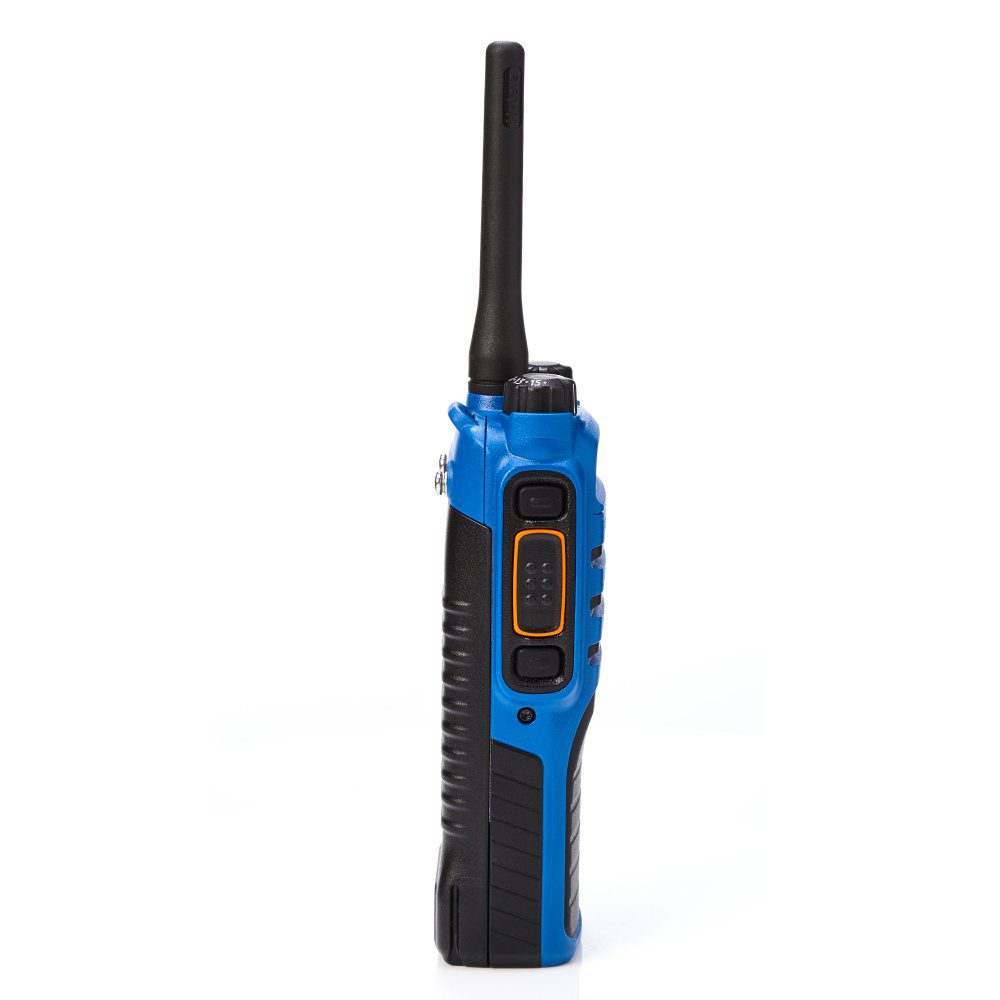

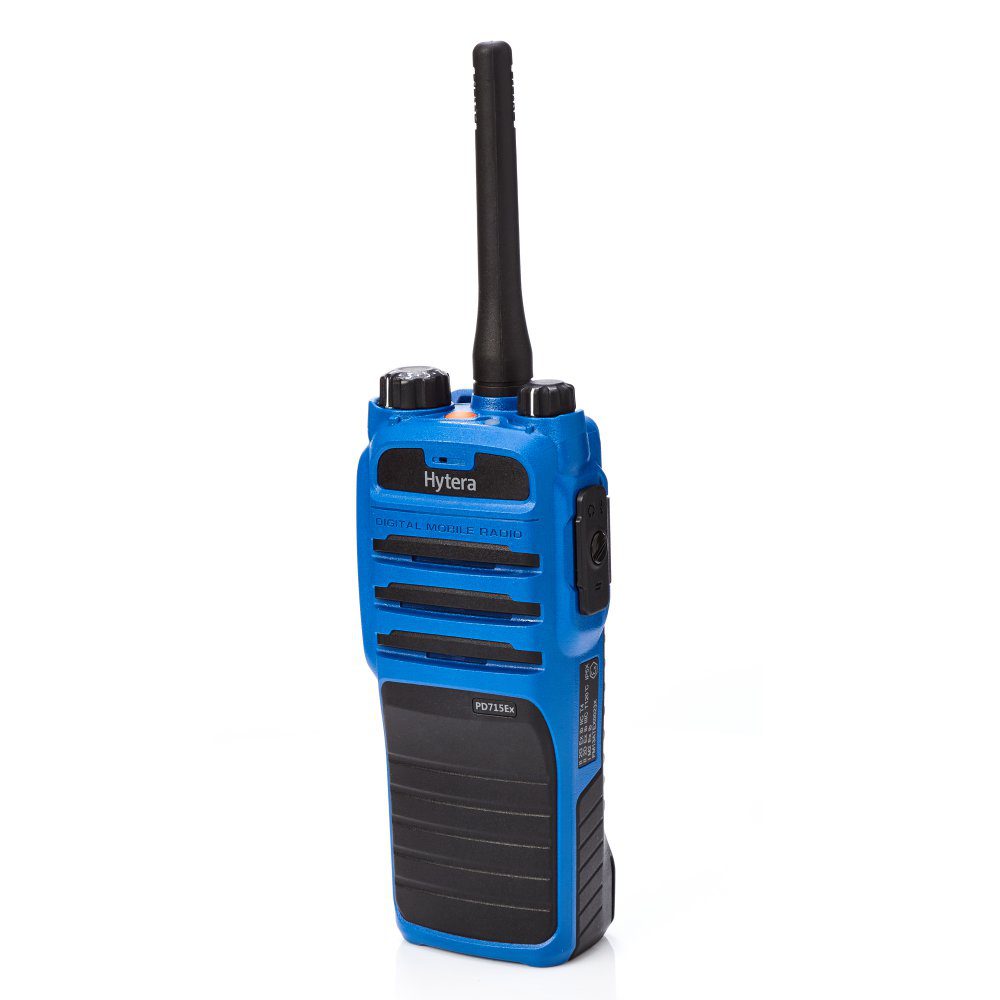

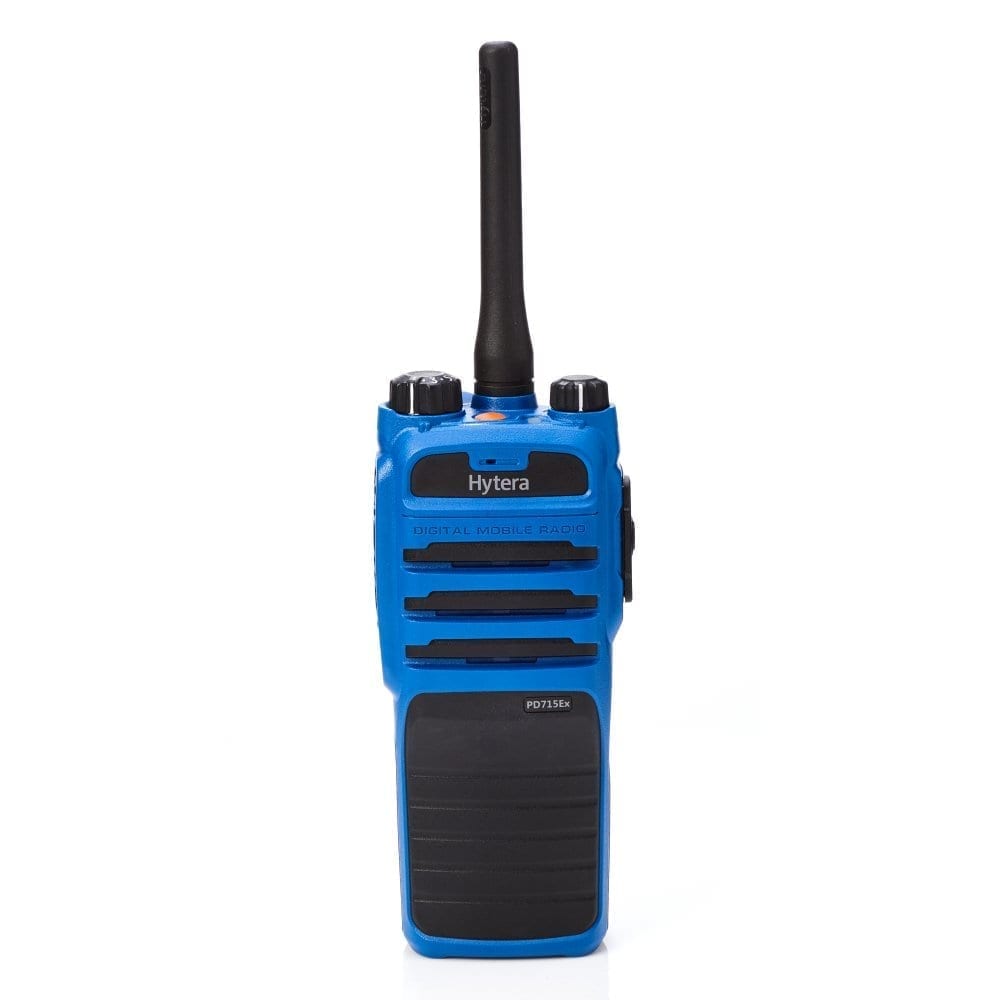

Environmentally safe and highly reliable – The PD715Ex is designed to meet the strict requirements of European ATEX and North American FM standards. With certifications for ATEX, IECEX, the latest FM and CSA specifications, the radio works safely in most hazardous environments even with the presence of hydrogen and dust particles. The overall design complies with the latest American Military Standard-(MIL-STD-810G), which means it can stand the harshest environments such as high/low temperatures, high humidity, vibration and shock.

Improved PCB circuit layout & EMC shielding – To achieve such a high safety standard, the PD715Ex adopts an optimised distributed line design on PCB, reducing the odds of a circuit fault. All the key components on the PCB are covered with shielding and the space between line, between components and between the components and shielding are properly spaced. This ultimately translates to a better EMC performance and less internal interference.

Enhanced Safety – The PD715Ex has a dedicated emergency button. In the case of any accident, one press will trigger an alarm and initiate a voice call to a pre-programmed work fellow or group. Built-in man-down, GPS and lone-worker functions are also available.

High-capacity and intrinsically safe battery – The PD715Ex has a high-capacity 1800mAh battery as standard, with a long shift life of 17 hours on a 5-5-90 duty cycle. The battery charging and discharging circuits are stringently designed to prevent overcharging or discharging causing high heat, which can lead to unstable battery environments. In addition, the battery cells are also encapsulated to redistribute single-point heat buildup and prevent air discharge.

High audio quality and assured communications – Benefiting from the advantages of DMR digital technology, the PD715Ex provides superior audio quality and stable communication performance with 40% less battery consumption when compared with analogue radios. DMR radios provide better communication quality, enhanced privacy and reduce overall equipment costs.

In the box:

• Radio
• Standard Antenna
• Li-ion Battery (1800mAh)
• Single Charger
• Leather Strap
• Belt Clip

• IP67 and MIL-STD-810G to ensure outstanding performance in harsh environments
• ATEX: II 2G Ex ib IIC T4 (Gas); II 2D Ex ib IIIC T120 IP5X (Dust); I M2 Ex ib (mining)
• FM: Class I, Zone 1 AEX/Ex ib IIC T4 ; Class II, III Div1, Group E, F, G T120 ; -20 <= Ta<=50
• Supports Global Positioning System (GPS) as standard
• Man-down (standard)
• Lone-worker
• Basic Scrambler and Encryption
• Advanced Encryption (optional)
• Pseudo trunk operation (DMO & RMO)
• Multi-Site Roaming (optional)
• One touch call/text messaging
• Telemetry
• Analogue & Digital Emergency

Learn more about ATEX and explosive atmospheres
